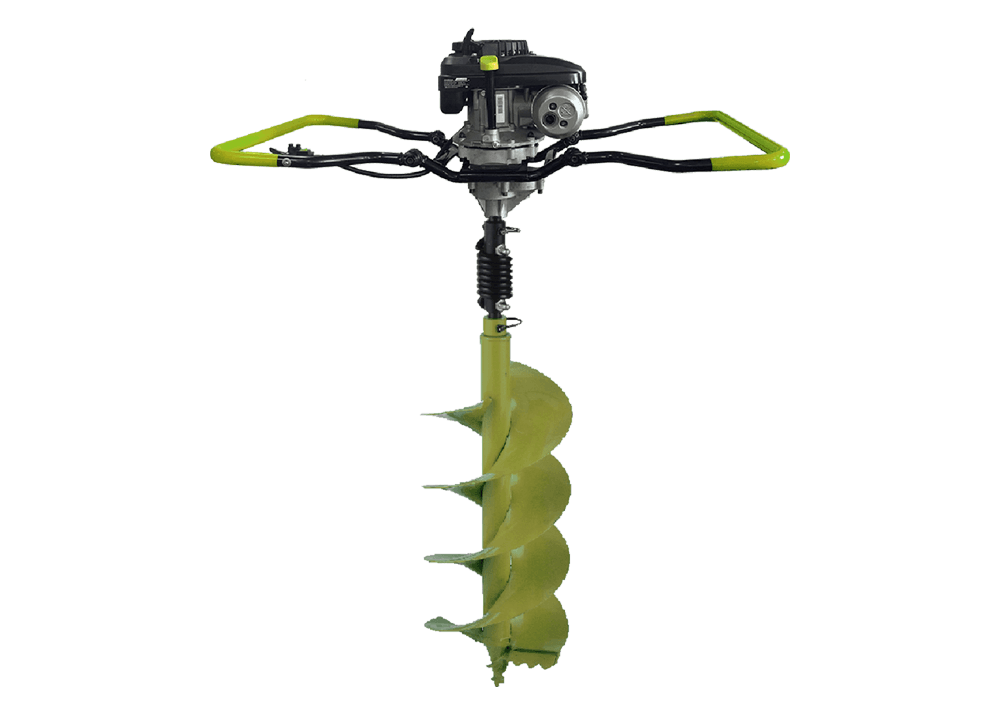

Earth Auger
BON-P-EA159-4S
Engine
5 HP
Maximum output speed
3800 rpm
Fuel tank capacity
1600 ml
Maximum torque
7 N.m
Idle speed
1800 ± 200 rpm
System startup
rollback
Engine oil tank capacity
0.55L
Recommended oil
SAE 10W-30
Engine fuel tank capacity
1.3L
Specific fuel consumption rate at rated power
410 g / kw.h
Sprocket structure
helical (rounded corner)
Main gear contact with output shaft
spline
Output ratio
25 : 1
Maximum driving capacity
drill bit ≤ φ 500 mm
Recommend unit
auger bit de ≤φ 400 mm
Drill Through the Toughest Grounds with Earth Auger
Digging holes in challenging surfaces can be demanding and time-consuming. The Earth Auger is specifically designed to tackle both soft and rocky terrains with ease. Featuring a robust engine and advanced components, this device delivers the torque required to penetrate even the most stubborn surfaces. Perfect for forestry, construction, plantation, and farming, the Earth Auger is a vital tool for professionals. Bonhoeffer provides one of the most dependable earth augers available, engineered for superior durability and high performance.
Earth Auger Engineered for High Performance
The BON-P-EA159-4S Earth Auger is equipped with a powerful 5 HP engine that delivers a maximum output speed of 3,800 RPM. This machine is built for efficiency, featuring a high-torque design with a maximum torque of 7 NM and an idle speed of 1,800 RPM. With a 1,600 ml fuel tank, you can complete your tasks with fewer refuelling interruptions. The auger supports drill bit sizes up to 500 mm, providing versatility for various applications. The device's sprocket structure features helical (rounded corner) teeth, and the main gear contacts the output shaft via a spline. Earth auger by Bonhoeffer is engineered for durability and smooth operations.
Frequently Asked Questions
All our products come with a comprehensive 36-month warranty covering manufacturing defects.
We have authorized service centers nationwide. Contact our customer support for the nearest location.
Regular maintenance includes oil changes, air filter cleaning, and spark plug replacement as per the user manual.
